SPECIFICATIONS
POWER SUPPLY: 115 VAC single phase, 60 Hz.
AIR SUPPLY: 1 C.F.M. at 80 p.s.i.
DIMENSIONS: 36” / 91.4 cm wide x 72” / 1.8 m high x 36” / 91.4 cm deep, including external controls.
BLADE CAPACITY: 1” x .035” (25.4 x .9 mm) to 3-1/8” x .063” (79.3 x 1.6 mm)
SHIPPING WEIGHT: 175 lbs. / 79 kg.
FEATURES

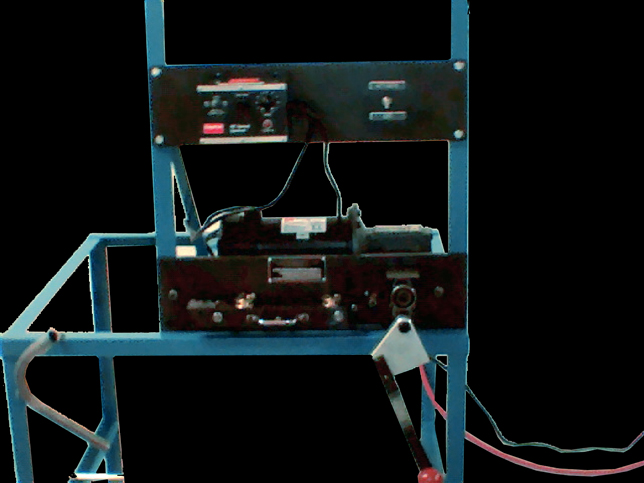

The F-200 Plastic Strip Machine is a self-standing floor mounted machine, which applies a tooth protecting
plastic capping material to medium to large size band saw blades. All controls are conveniently located
and easy to operate. A variable speed drive system allows the operator to run the machine at slower speeds
for long blades and faster speeds for shorter blades. A capping pressure cylinder allows easy change over when changing plastic strip and blade size. Other features include self-positioning strip pressure guide bar, overhead guide wheels and lower strip feeding guide.
|
|
|
