SPECIFICATIONS
POWER SUPPLY: 115 VAC single phase, 60 Hz.
AIR SUPPLY: 1 C.F.M. at 80 p.s.i.
DIMENSIONS: 33” (83.8 cm) x 18” (45.7 cm) x 12” (35.5 cm), including external controls.
BLADE CAPACITY: 1” x .035” (25.4 x .9 mm) to 2” x .063” (54 x 1.6 mm)
SHIPPING WEIGHT: 75 lbs. / 34 kg.
FEATURES

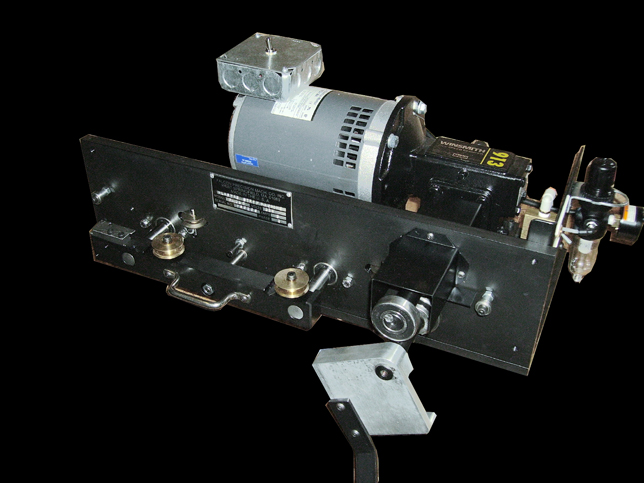

The F-150 Plastic Strip Machine is a bench-mounted machine, which applies a tooth protecting
plastic capping material to medium to large size band saw blades. All controls are conveniently located
and easy to operate. A single speed drive system allows the operator to run the machine at a constant speed for all blades. A capping pressure cylinder allows easy change over when changing plastic strip and blade size. Other features include self-positioning strip pressure guide bar and hand guard.
|
|
|
